The SecureStart (543-0120-00) module is designed to work with single-phase (60 Hz, 208/230v) Copeland Scroll® compressors in a variety of applications. It is best suited for applications where in-rush current is regulated or where voltage variations are common. This module can be used with Copeland Scroll single-stage, Copeland Scroll UltraTech dual capacity, or Copeland Scroll Digital™ continuously modulating compressors.

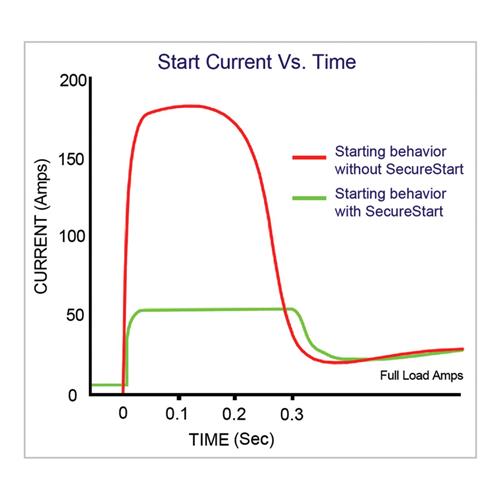

SecureStart (543-0120-00) is designed for motors with a maximum operating current of 32 amps. The product limits starting current to less than 45 amps and is self-adjusting to motor current requiring no manual calibration. Use of SecureStart with compressors that have nameplate RLA values above 32 amps must be tested by the system designer to ensure that the application of the compressor does not exceed the current limitations of the SecureStart module.
The product limits starting current to less than 45 amps and is self-adjusting to motor current requiring no manual calibration. Use of SecureStart with compressors that have nameplate RLA values above 32 amps must be tested by the system designer to ensure that the application of the compressor does not exceed the current limitations of the SecureStart module.

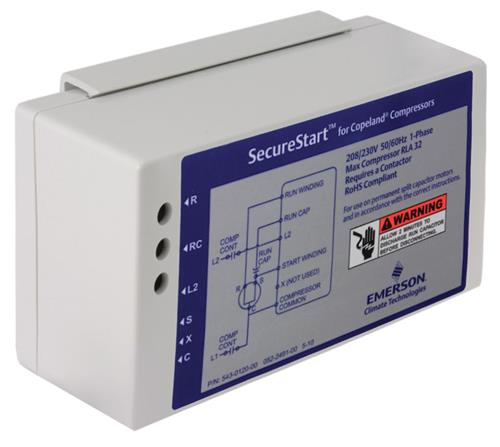

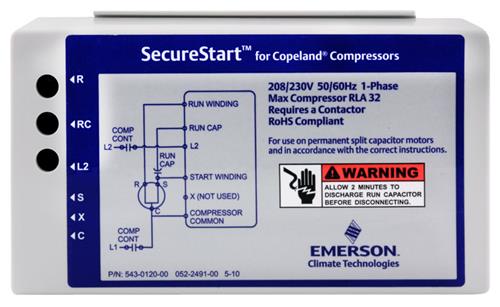

Copeland® Secure Start # 543-0120-00
Features:
-
FREE SHIPPING!
-
R410A Copeland® Compressors Compatible with SecureStart™ : ZP16 to ZP54K3E-PFV , ZP16 to ZP54K5E-PFV , ZPS20 to ZPS60K4EPFV
-
R22 Copeland® Compressors Compatible with SecureStart™ : ZP22 to ZR61K3-PFV , ZR16 to ZR54KA-PFV , ZR67 to ZR80KW-PFV
-
R407C Copeland® Compressors Compatible with SecureStart™ : ZR16 to ZR54K5E-PFV , ZR22-ZR16K3E-PFV , ZR48 to ZR68KCE-PFV
Replaces / Supersedes: Similar Sure Start Kits
Please Contact Us with your System's Model & Serial Number to ensure proper component.
