Tri-Onic TR-R current-limiting time-delay fusses are engineered for overcurrent protection of motors , transformers , service entrance equipment , feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associatied with todays motors and transformers.

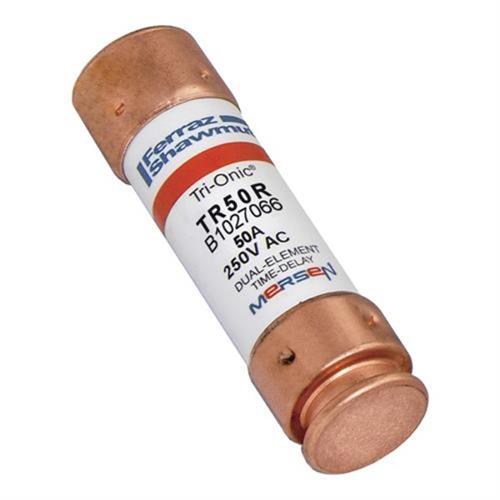

TR50R • Dual Element Time-Delay Fuse, Class RK5
Features / Specifications
-
FREE SHIPPING!
-
50 Amp
-
Class RK5
-
Dual Element Time Delay Fuse
-
250V Application
-

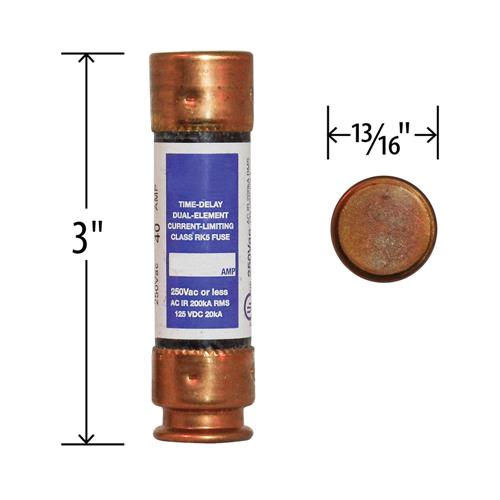

3" length x 13/16" diameter
-
UL Listed to Standard 248-12 File E2137
-
CSA Certified to Standard C22.2 no. 248.12
-
DC Listed to UL Standard 248 TRS Only
Applications
-
Motor Circuits
-
Mains
-
Feeders
-
Branch Circuits
-
Transformers
-
Service Entrance Equipment
-
Genereal Purpose Equipment
Supersedes / Replaces: ECNR50 ECNR-50 FUS1888 FUS-1888 FUS01888 FLRN050 FLRN-50 FRN-R-50 FRNR50 7-CRNR50 MARS 82042 Cefco CRN-R LON-R Lttlefuse FLNR Busman FRN-R FRNR HAC-R HACR Ferraz/Shawmut TR50R TR50-R and others.
Additional fuses available , Contact Us with your System's Model & Serial Number for more information.
Click on any of the links below to download associated documentation.
»
DS-TR-R-TRS-R-Class-RK5-Time-Delay-Mersen.pdf
