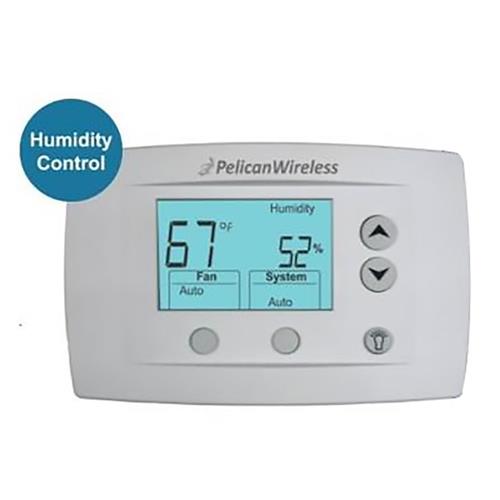

The TS200H is a commercial grade temperature thermostat with a built in humidity sensor. The TS200H is designed for familiarity, simplicity, and intuitiveness. With Online temperature and humidity management, configuration, and scheduling, you now have control of your building's comfort and efficiency. Start reducing energy use and increase comfort throughout your facility today!
Pelican delivered an industry changing solution when it introduced a simple way to deal with limited thermostat wire. With only three wires, the Pelican TS200H can control up to 2H/2C Conventional or 3H/2C Heat Pump HVAC units. Never pay for unnecessary wire to be run or extra equipment. Pelican saves you time and money with their retrofit friendly designs.
PELICAN WIRELESS # TS200H
Product Features
-
FREE SHIPPING!
-
Alarm Notifications - Every TS200H monitors its own space temperature and humidity levels in real-time
-
Easy Installation - The TS200H installs the same way as any stand-alone programmable thermostat. It connects to the HVAC unit using standard thermostat wire
-
Historical Trend Data - Every TS200H tracks trend data in real-time so you can visually see exactly how your spaces are operating at any moment of the day
Product Specifications
-
Hardwire: 24VAC, 60Hz; 50mA
-
Voltage Rating: 23 - 30VAC
-
Operating Range: -4 deg. F to 122 deg. F
-
Operating Humidity (% RH): 5 to 90%; non-condensing
-
Thermostat Keypad Lockout
-

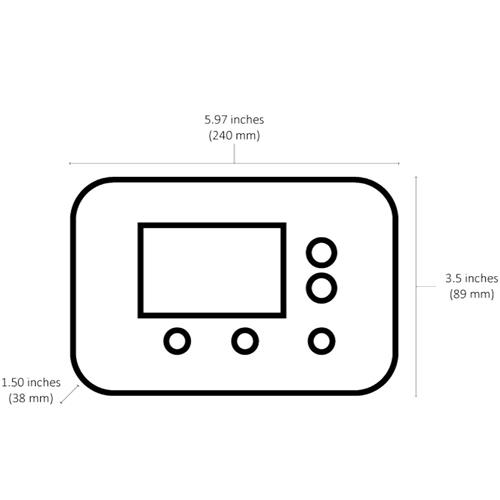

HWD: 3.5" x 5.97" x 1.5"
-
UL Certified
Replaces / Supersedes: Pelican Wireless TS200H TS-200H 200H 355884 PelicanWireless 200 CAC190103 855406007050
Additional Pelican Products Available , Contact Us for more Information & Availability
