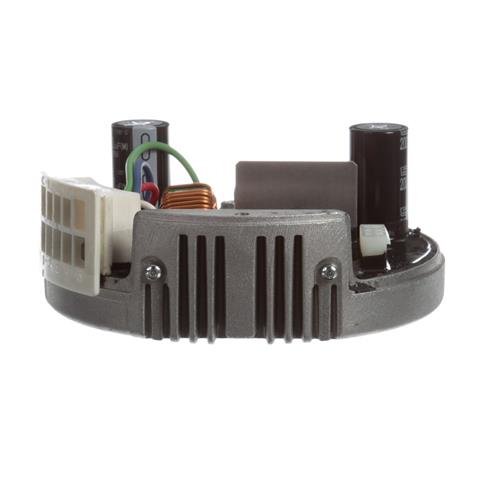

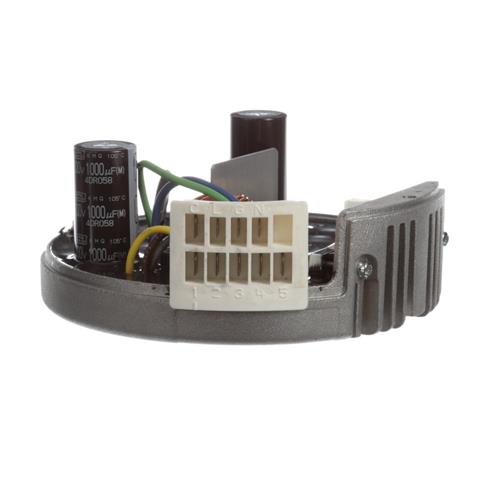

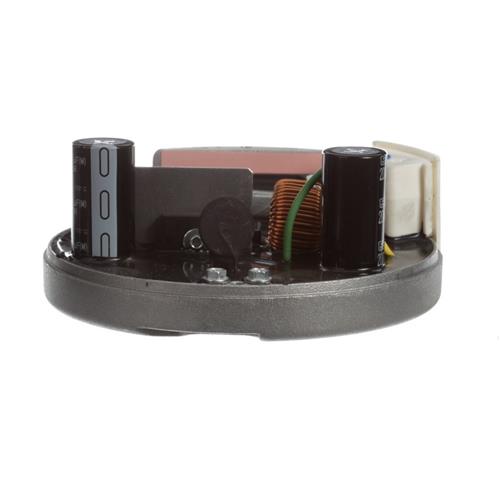

1/3 HP 208/230V Universal X13 & Evergreen Replacement Module

SKU: 6203ECTL | Brand: Capcom / Genteq / GE
QTY
Price
$227.85/each
Please Contact Us for 35+ pricing.
This Item Ships FREE!
Add To Cart
Overview
Media
Evergreen X-13 Direct Replacement Modules...No programming required , can be used to replace ECM Control Modules in Genteq X13 Models , Endura Pro and Evergreen EM Motors Only.  Bi-directional CW and CCW with rotation sensing technology.   For Proper Replacement:  match the horsepower (HP) and voltage (VAC) ratings of the new control to the failed control.  It is not necessary for the RPM or the amperage (FLA) to match.

Evergreen Control Module Kit # 6203ECTL

Features / Specifications
  • 1/3 HP
  • 208-230/60/1 Voltage
  • FREE SHIPPING!
  • Pre-Programmed
  • No Complex Wiring
  • 2-Year Warranty
  • Max Current 2.8 Amps
  • Auto Rotation Sensing CCW/CW
  • Compatible with OEM Harness / Plugs

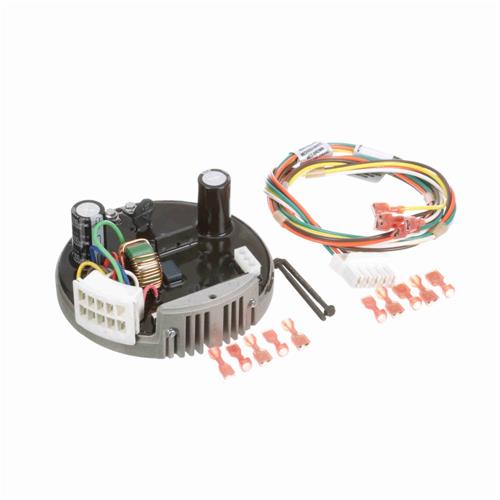

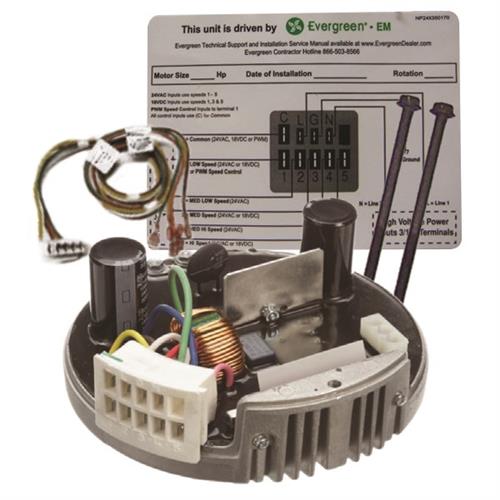

Kit Includes:  (1) EM Control Module , (2) Mounting Bolts , (1) Low Voltage Harness (optional) and Motor ID Labels

PROP 65 Warning LabelWARNING:  CA Residents: Prop 65 Warning(s) - For more information go to  www.P65Warnings.ca.gov

Replaces / Supersedes Genteq Evergreen Module X13 Modules on 6203 6203EM and other Genteq 1/3 HP 208/230V Motors as well as Carrier Factory Authorized Parts & ICP X13 Genteq Motors

DOES NOT REPLACE Azure Digi-Motor EON , 3.0 , 2.3 and 2.5 ECM Motors

Additional discounts available for orders of (35) Modules or more...Contact Us for a quote
