124 - 156 uF x 220/250 VAC BMI Start Capacitor

SKU: BMI_124-156x250 | Brand: BMI
QTY
Price
$12.55/each
This item ships FREE!
Add To Cart
Overview
Documentation
BMI Motor Start Capacitors are non-poloarized aluminum electolytic capacitors designed for intermittent duty in AC motor starting circuits as well as starting fractional horsepower, single-phase electric motors and gear motor applications.  Housed in rugged plastic cases, which require no added installation, these capacitors Made in th U.S.A. are designed and engineered to the highest EIA Standards.

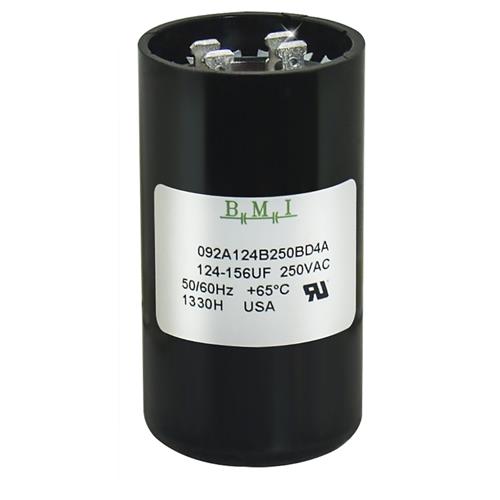

Barker Microfarads Capacitor # 092A124B250BD4A

Specifications
  • Round , Start Capacitor
  • 124-156 uF Microfarad Rating
  • 220 / 250 VAC Rating
Features
  • FREE SHIPPING!

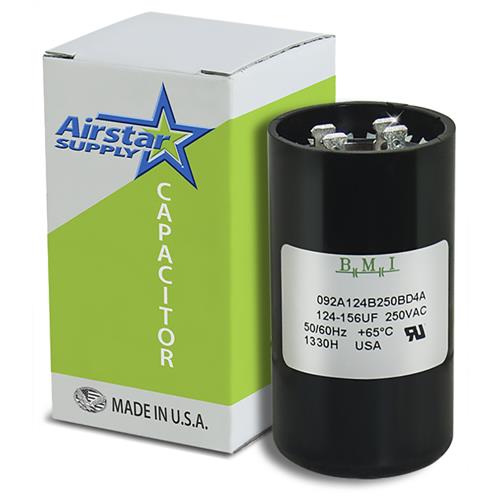

  • All Capacitors are Individually Boxed
  • Plastic Case , Moisture and Oil Resistant
  • UL 810 Recognized Capacitors
  • -40 to 165°C Operating Temperature
  • 50/60 Hz Operating Frequency

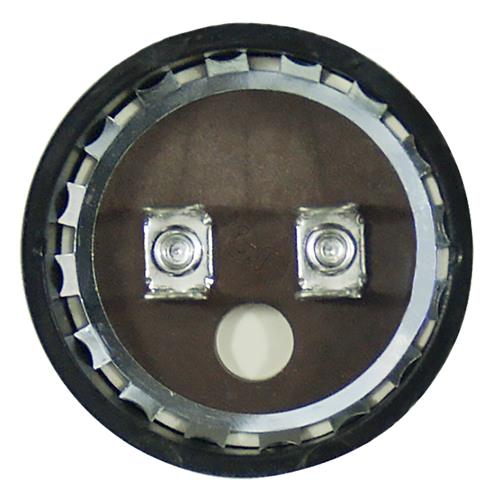

  • 1/4" Quick Disconnect Terminals
Supersedes all old Aerovox 124-156 , 124 - 156 uF , MARS , JARD , Global 1047 , NTE MSC250V124 , Supco CS124-156X220 , CS124X220 Packard PTMJ124 Vanguard BC-124M-250 and other Start Capacitors with this uF/Mfd & VAC Rating.

PROP 65 Warning LabelWARNING:  CA Residents: Prop 65 Warning(s) - For more information go to  www.P65Warnings.ca.gov

For Additional Capacitors & Quantity Discounts Visit:  www.JustCapacitors.com
Click on any of the links below to download associated documentation.

» BMI Specifications - Start Capacitors.pdf
» MSDS Safety Data Sheet - BMI Start Capacitors.pdf
