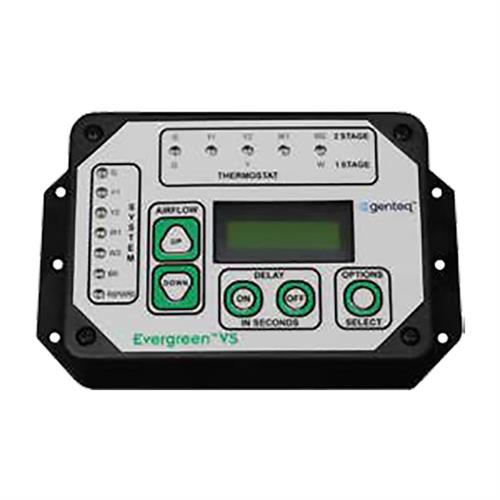

The Evergreen® VS motor and Evergreen VS user interface are designed to replace Genteq® constant airflow (variable speed) ECM indoor blower motors. The Evergreen VS product line is designed specifically to replace Genteq models 2.3, Eon® and 3.0 motors. These motors represent the largest volume of variable speed motors used to date in HVAC OEM indoor blower motor applications.

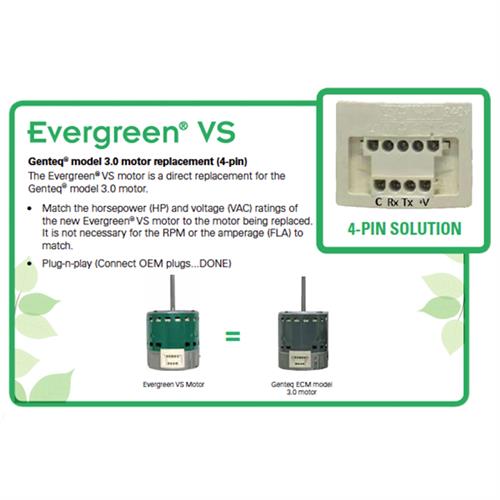

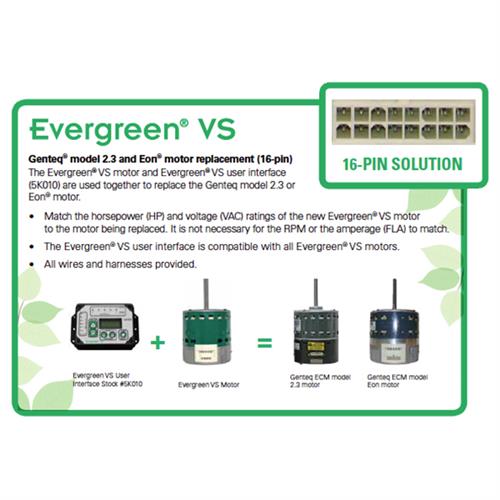

Plug & Play for 4-Pin Installations. User Interface Module 5K010 required for 16-pin installations. Match the horsepower (HP) and voltage (VAC) ratings of the new Evergreen® VS motor to the motor being replaced. It is not necessary for the RPM or the amperage (FLA) to match.

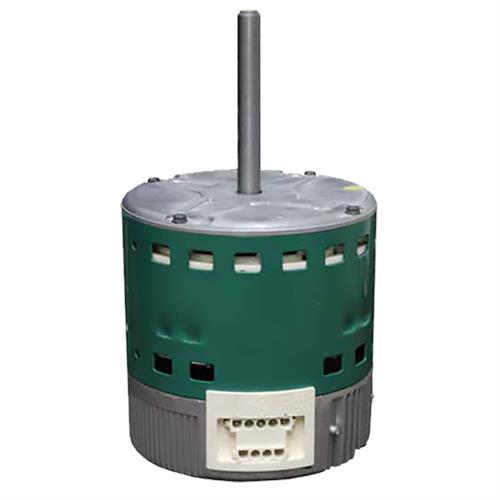

Evergreen # VS 6510V
Features / Specifications
-
1 HP
-
120/240V Single Phase Input, 50/60Hz
-
Variable Speed , Pre-Programmed
-
FREE SHIPPING!
-
1/2" Shaft
-
NEMA 48-Frame , 5.6" Diameter
-
Horizontal & Vertical Shaft Down (VSD) Mounting
-
MOTOR ONLY / INTERFACE SOLD SEPARATELY
-
Reversible Rotation: CCW or CW
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes: 5SME39SXL3222 6510 , 6510VS , Goodman 0231K00036A , American Standard , Trane , Lennox , Carrier Evolution Infinity Rheem , Ruud and 100's of other OEM Variable Speed Motors.
