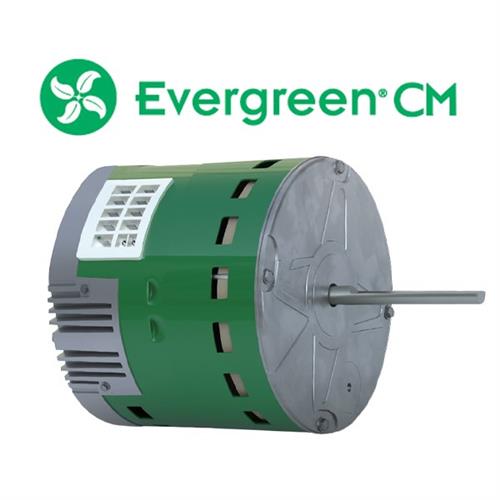

The Evergreen CM motor is made with the same field-proven, high-efficiency ECM technology that has been used for more than 20 years in new HVAC equipment. It features flexible control methods to help the installer balance airflow in HVAC systems such as VAV (Variable Air Volume) boxes and Packaged HVAC systems. The Evergreen CM is designed as a direct replacement for OEM (Original Equipment Manufacturer) Genteq model X13 (Constant Torque ECM) or as a field replacement for existing PSC (Permanent Split Capacitor) motors.
Evergreen # CM 6410
Features / Specifications
-
1 HP
-
460 Single Phase Input, 50/60Hz
-
5 Discrete Speeds using 24VAC (3 using 18VDC)
-
FREE SHIPPING!
-
1/2" Shaft
-
NEMA 48-Frame , 5.6" Diameter
-
Horizontal & Vertical Shaft Down (VSD) Mounting
-
Reversible Rotation: CCW or CW
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes: 6405 6405CM American Standard , Trane , Lennox , Carrier , Rheem , Ruud and 100's of other OEM PSC Motors. These motors DO NOT REPLACE OEM Constant Torque ECM Outdoor Fan ECM Motors.
Click on any of the links below to download associated documentation.
»
Evergreen CM Installation Guide.pdf
»
Evergreen CM Brochure.pdf
