The TA1 is a wired thermostat accessory either used as an external temperature sensor for a thermostat or to provide an input for an external dry contact relay. It is compatible with Pelican's TS200, TS200H, TS250, and TS250H models. Connecting the TA1 is simple and provides a wide range of input flexibility. The most common applications for a TA1 include: averaging out the temperature between the sensor and a thermostat, as an external temperature probe for a thermostat, as a mounting for a TA1 in a cold box for temperature monitoring, as an input for a supply air temperature probe, or as a dry contact input for an occupancy sensor. Only one TA1 can be used per thermostat.
PELICAN WIRELESS # TA-1
Product Features
-
FREE SHIPPING!
-
Online Monitoring - The TA1 is Internet enabled once connected to a Pelican thermostat
-
Occupancy Sensor Input - A TA1 can accept a dry contact occupancy sensor
-
Temperature Detection and Averaging - Connect a TA1 to a Pelican thermostat for external temperature monitoring and temperature averaging
Product Specifications
-
POWER: Hardwire: 24VAC, 60Hz; 50mA
-

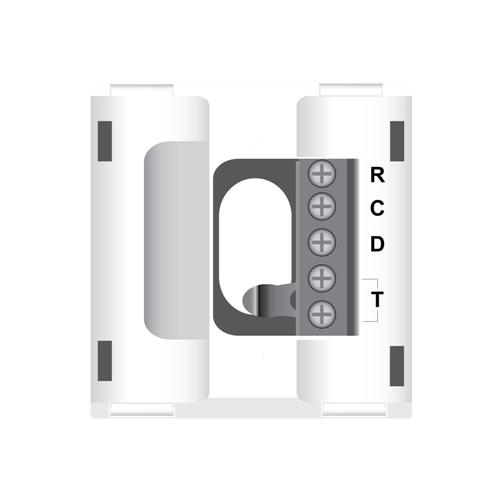

Communication Wiring , R: 24VAC , C: Neutral , D: Data
-
Operating Range: -4 deg. F to 160 deg. F (-20 deg C to 50 deg. C)
-
HWD: 2.5" x 2.5" x .75"
Replaces / Supersedes: Pelican Wireless 59852-TA1PELICAN 59852-TA1 59852 353211 CAC190104 855406007234 PelicanWireless TA1
