33CS2PPRH-03 , Carrier Edge Commercial Thermostat

SKU: 33CS2PPRH-03 | Brand: Carrier / ICP
QTY
Price
Please Contact Us for pricing.
Bryant / Carrrier / ICP OEM Component
Add To Cart
Overview
Documentation
Carrier's flexible 7-day, 5/2-day, or 1-day commercial programmable thermostats offer quality and reliability.  The wall-mounted, low-voltage thermostat maintains room temperature by controlling the operation of an HVAC (heating, cooling and ventilation) system. Separate heating and cooling set points and autochangeover capability allow occupied and unoccupied programming for energy savings.

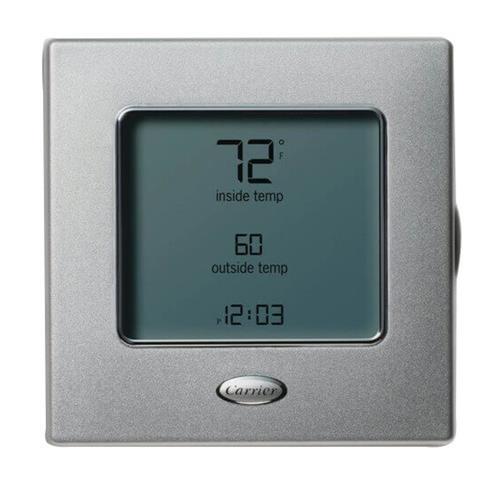

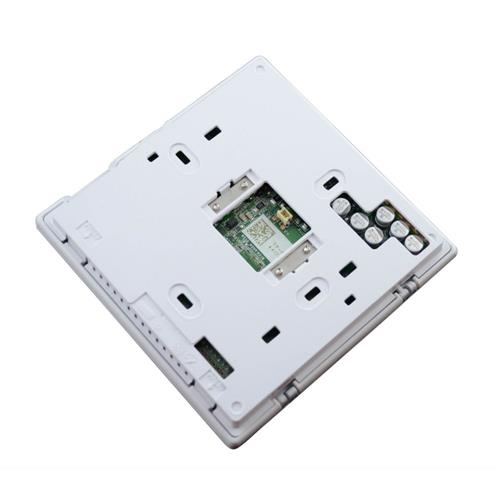

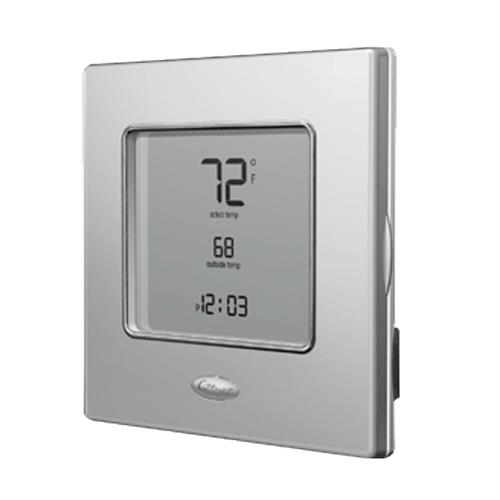

Carrier ® PRO  #  33CS2PPRH-03 Programmable HP Commercial Thermostat

Features / Specifications:
  • FREE SHIPPING!
  • 24VAC
  • Sleek design with simplified two-wire installlation
  • 2-stage heat/2-stage cool with one stage auaxiliary heat (air conditioning, heat pump, and water source heat pump units)
  • Humidity control capability integrates with Humidi-MiZer® dehumidification system
  • Poportional integral control of heating and cooling stages
  • Compressor lockout in emergency heat mode for heat pumps
  • Auxiliary heat lockout sensing for heat pumps (requires outdoor air sensor)
  • Remote sensing and averaging with occupancy override , 7-day, 5/2-day, or 1-day programmable or non-programmable
  • 4 or 2 periods per day selectable
  • UV light and filter service reminder
  • Random start, smart recovery
  • Dry contact enables economizer control

NOTE:  DO NOT SELECT YOUR PART BASED ON THE IMAGE / UNIT SPECIFIC COMPONENT

Replaces/Supercedes:  33CS2PPRH03 33CS2PPRH-03 33CS2PP2S-03 33CS2PP2S03 33CS2PP2S 822529612393 EDGEPRO Edge Pro and Similar

Commonly Installed on VARIOUS Carrier Units

NOTE:  Product Availability & Leadtimes have been  impacted due to  delays in Manufacturing and/or Supply Chain disruptions.  Please  Contact Us  to confirm pricing and availability in order to place your order

PROP 65 Warning LabelWARNING:  CA Residents: Prop 65 Warning(s) - For more information go to  www.P65Warnings.ca.gov

Additional Products & Discounts available...visit our New Website: www.AirstarSolutions.com or Contact Us

Click on any of the links below to download associated documentation.

» Owners Manual TP-PRH01-B Edge.pdf
» Installation Manual TP-PRH01-B Edge.pdf
» Product Data TP-PRH01-B Edge.pdf
