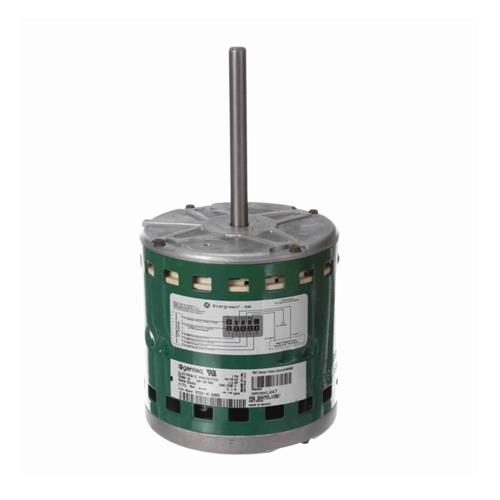

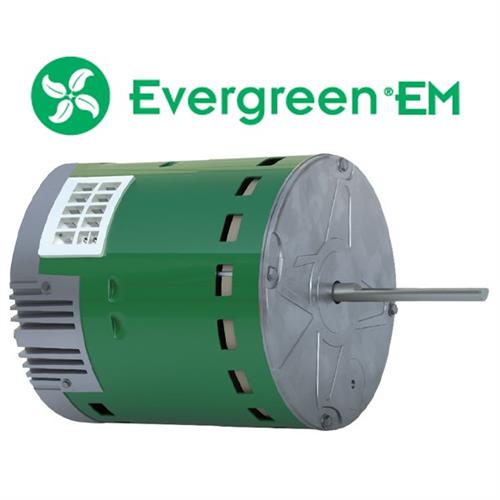

Evergreen EM X-13 Direct Replacement Motors...No programming required , designed to replace ALL X13 Style Constant torque ECM Motors. 5 discreet speeds available using 24VAC (3 using 18VDC) , always energized providing the ability to adjust airflow for faulty duct systems and designs. Fully encapsulated, one-piece design offers lower profile and easy installation. Bi-directional CW and CCW with rotation sensing technology.
Evergreen # EM 6205X
Features / Specifications
-
1/2 HP
-
Dual Voltage 115/208-230 V
-
-
-
Max Current 4.1 Amps
-
Built-In 4kV Surge Protection
-
NEMA 48-Frame , 5.6" Diameter
-
Multi-Speed , Constant Torque , Brushless DC Motor
-
5 Discrete Speeds Using 24VAC (3 using 18VDC)
-
Reversible Rotation with Auto Sensing Technology
-
Electronic Overload Protection
-
48 FRAME , Belly Band Mount
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes American Standard & Trane - D672366G28 , D672366G33 , MOT12493 , MOT12494 , MOT-12494 , MOT12542 , MOT12888 , MOT-12888 , MOT12292 , MOT12319 , MOT12542 , MOT13004 , MOT-13004 , MOT13592 , MOT13593 , MOT13907 , MOT13908 , MOT14191 , MOT15219 , MOT16683 , MOT17386 , MOT17019 , MOT17020 , MOT17043 , MOT17044 , MOT17051 , MOT17062 , MOT-17386 , MOT17734 , MOT17836 , MOT18456 , MOT18636 , X70370580040
Carrier Factory Authorized Parts & ICP - HD44AR242 HD44AE234 HDAE235 4HD44AE137 HD44AE137A HD44AE138 HD44AR241 HK44ER155 HK44ER156 HK44ER220 HK44ER222 HK44ER223 HK44ER224 HK44ER225 HK44ER232 HK44ER233 HK44ER234 HK44ER235 HK44ER240 HK44ER241 HK44ER242 1177997 1179595 1172987 1173682 5SME39HKL017 5SME39HXL285 5SME39HXL298 S81-948 1178980
Replaces other 1/2 HP X13 Constant Torque Motors from ALL Major Manufacturers as well as the Azure Digi-Motor # 10800 DOES NOT REPLACE EON , 3.0 , 2.3 and 2.5 ECM Motors
Commonly Found in American Standard 4WHC3036A1000A , Bryant , Carrier FX4CNF036 , FX4CNF036000AAAA , ICP WAHM364A2 , Lennox , Payne , Rheem RQPM-A036JK , Trane , York , Nordyne M0023925R and others.
