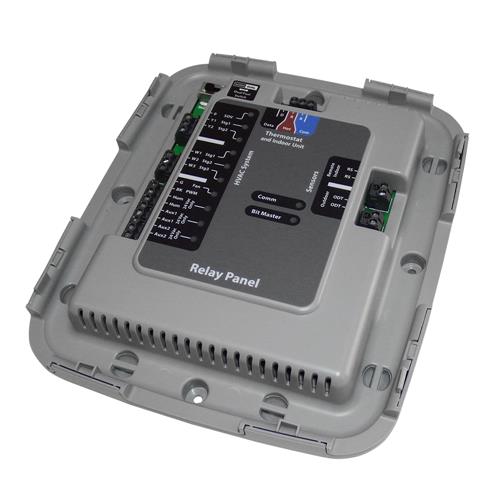

Conventional 24 Volt HVAC System Interface Relay Panel for American Standard AccuLink Platinum ZV or Trane ComfortLink XL Control.
TRANE / AMERICAN STANDARD Bay Panel # BAY24VRPAC52D
Features / Specifications
-
FREE SHIPPING!
-
5 Heat (Gas, Oil,Electric) / 2 Cool / Heat Pump / Dual Fuel
-
Optional Remote Indoor Temperature Connection Point
-
Optional Outdoor Temperature Connection Point
-
LED Stage Indicators
-
Removeable Low Voltage terminal Blocks for Easy Service & Replacement
-
Humidifier Control
-

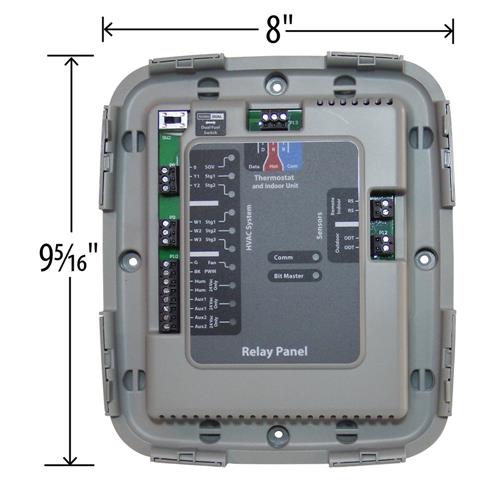

Dimensions: 8" width x 9.3" height x 1.9" depth

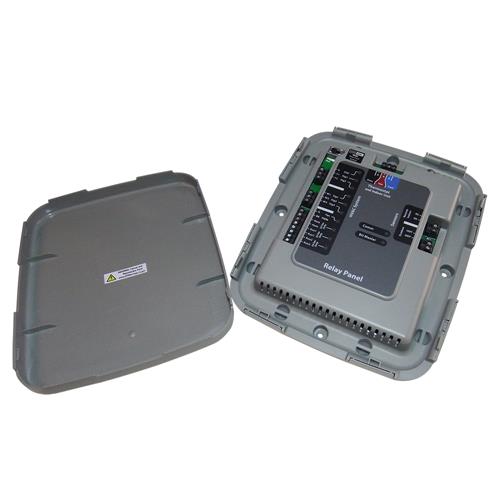

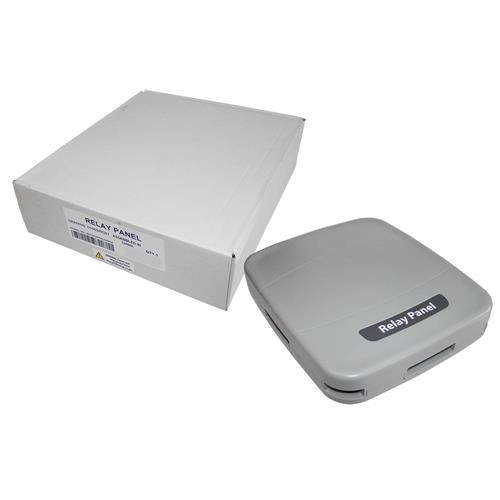

What's Included: Relay Panel cover , Relay Panel base , Mounting screws & hardware , Installation guide. This unit includes the AUX Contacts which are not included on the BAY24VRPAC52DA. AUX Contacts often used for Whole-home dehumidifer control and/or ventilation control.
Replaces / Supersedes: BAY PANEL BAY24 BAY24VRP BAY24VRPAC42DA BAY24VRPAC52DA BAY24VRPAC52DB BAY24VRPAC52DC CNT6838 CNT-6838 CNT06838 CNT7346 CNT-7346 CNT07346 CNT6656 CNT-6656 CNT06656 D156520G01 BAY24VRPAC52D BAY24VRPAC52DC
Click on any of the links below to download associated documentation.
»
Install Guide - 24VPanel.pdf
»
AccuLinkProducts.pdf
