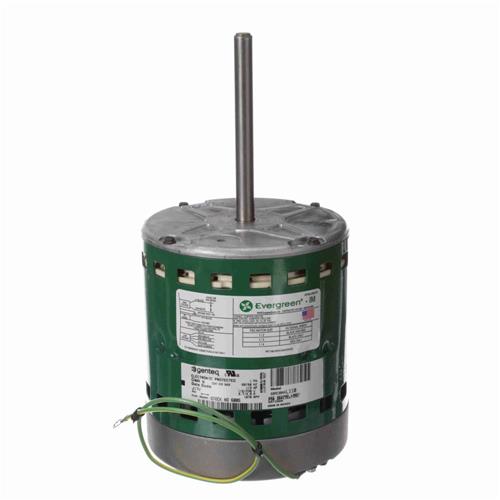

Evergreen IM High-Efficiency ECM Replacement Motor that is designed to replace factory PSC blower motors in HVAC systems including fossil fuels , electric heat , A/C , heat pump , dual fuel and geothermal; does not replace variable speed X13 ECM Motors. Evergreen motors use up to 25% fewer watts in operating mode and up to 74% fewer watts than a PSC motor in constant fan.
Evergreen # IM 6005
Features / Specifications
-
1/2 HP ( 1/2 , 1/3 , 1/4)
-
115/230V , Single Phase
-
Operating Speed Range 1070 RPM
-
FREE SHIPPING!
-
Max Current , 6.7/4.0 Amps
-
NEMA 48-Frame , 5.6" Diameter
-
4-Speed Selections for Heating & Cooling
-
Auto Sensing Technology
-
UL & CSA Recognized
-
2-Year Warranty
Replaces / Supersedes: 6005IM , 6005 IM , 600-IM , GE 5SME39HXL110 , 815585020547 and 100's of PSC Motors. DOES NOT REPLACE EON , 3.0 , 2.3 and 2.5 ECM Motors
Click on any of the links below to download associated documentation.
»
Evergreen IM Brochure.pdf
