Flood Prevention Switches are simple to install, easy to service and extremely reliable. As water level in the auxiliary or main drain pipe rises due to a clogged air conditioning condensate drain, the switch shuts off the system—thus preventing water from overflowing and causing damage to doors, walls and ceilings. At the heart of the switch is a durable yet precise magnetic reed switch. Constructed of materials that will not rust or stick, the switch operates smoothly every time.

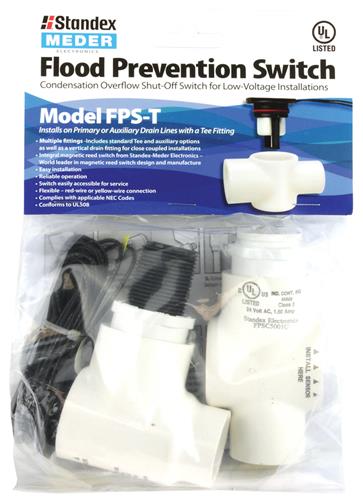

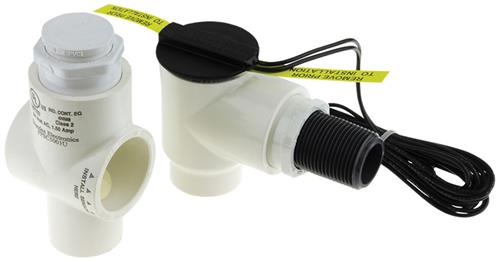

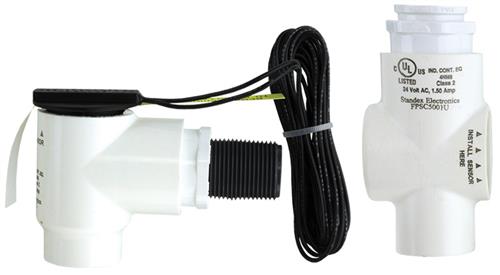

Safe Switch / Condensate Switch # FPSC5001U / CS-1 / FPS-T
Features / Product Specifications
Replaces / Supersedes: FPST MARS 21793 685744217930 CS-1 CS1 SS1 SS-1 TP-SS1 TP-SS-1 B17-152 B17152 SS-1 84-332 021449976312 021449976329 10021449976319 10021449976326 118954 Rectorseal 97632 FPSC5001U 662766533705 662766249927 SWT3672 SWT-3672 SWT03672 SWT3232 SWT-3232 SWT03232 Safe-T-Switch® Overflow Shut-Off Switch and Similar Condensate Switches.
Our Standex Float Switches are UL® Listed to comply with UL 508 and most applicable building codes. Tested for 6000 cycles at 1.25 amps and listed for use in a 24-volt circuits by Underwriters Laboratories®.
Click on any of the links below to download associated documentation.
»
Float Switch Flyer.pdf
»
Submittal Data Sheet FPS-T.pdf
