FAST-STAT 7000 Wire Extender

SKU: FASTSTAT7000 | Brand: Universal Brands
& Over
This Item Ships FREE!

Add To Cart
For over 15 years now, FAST-STAT wiring extenders have eliminated the need to re-pull thermostat and condenser cables when adding or upgrading HVAC equipment.   FAST-STAT provides a significant savings in installation costs. A new system can be wired in about 20 minutes.

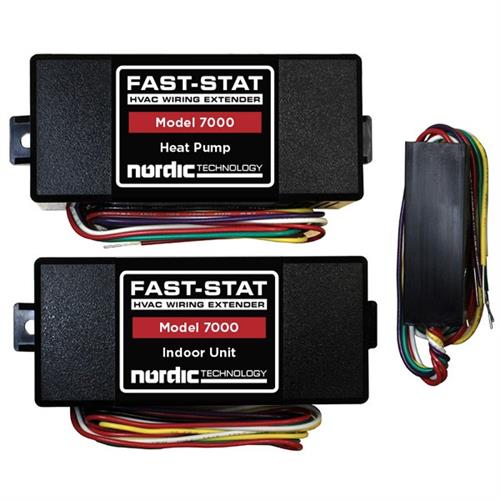

FAST-STAT Wire Extender  #  FAST-STAT 7000

Model 7000 provides 7-wire control from the thermostat to the furnace or fan-coil over a 4-wire cable. This includes “R”, “C”, “G”, “W”, “Y1”, “Y2” and “O/B”. From the furnace or fan-coil to the heat pump it provides 6-wire control over a 2-wire cable. This includes “R”, “C”, “Y1”, “Y2”, “O/B” and “W” (defrost).

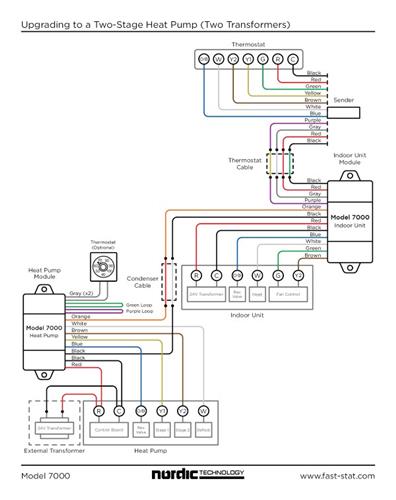

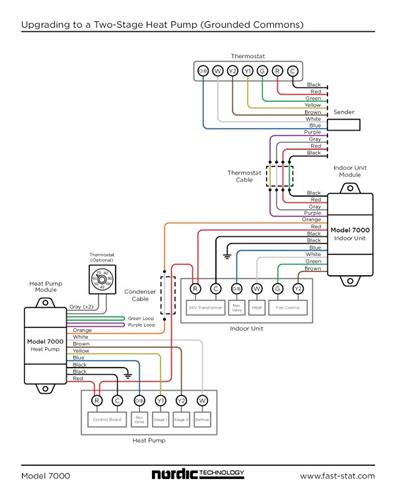

Common uses include converting from an air conditioning to a heat pump (single or 2-stage) system.

  • For Converting an Air Conditioner to a Heat Pump
  • 20-30VAC Power Input
  • 5 Contacts
  • 24V Contact Rating
  • Suitable for up to 300 ft. distance between sender and receiver (when using 18 AWG cable)
  • No batteries required
Replaces / Supersedes:  FS7000 FS-7000 FASTSTAT7000 FAST STAT 7000 7000 662766348767 616316617308 FAST-STAT FAST-STAT-7000
PROP 65 Warning LabelWARNING:  CA Residents: Prop 65 Warning(s) - For more information go to
Additional Products Available...Contact Us for More Information
Click on any of the links below to download associated documentation.

» FAST-STAT General Instructions.pdf
» FAST-STAT 7000 Instructions.pdf
