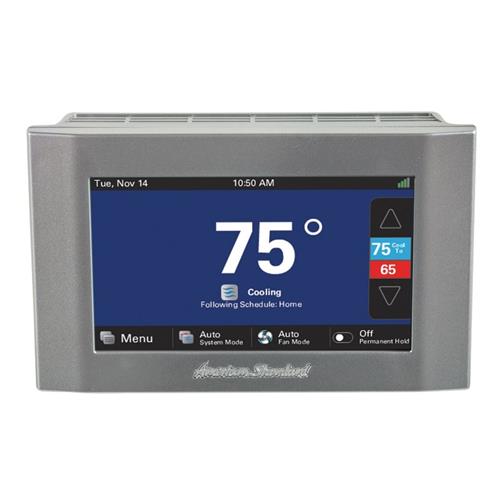

American Standards new 824 GOLD XV Control with 4.2inch color touchscreen and built-in Nexia Home Intelligence Bridge. You can remotely control and schedule the thermostat from any internet-enabled smartphone , tablet, or computer.
American Standard ACONT824AS52DB
Features Include:
-
FREE SHIPPING!
-
Nexia™ Z-Wave Plus Bridge Inside
-
Nexia™ Diagnostics
-
Connect over 200 Z-Wave devices
-
WiFi or Ethernet connection
-
Control from a smartphone, tablet, or computer
-
4.3" Color touchscreen
-
7 Day programmable with up to four schedules per day
-
Five day weather forecast, weather radar, and weather alerts
-
Indoor relative humidity display
-
Enhanced dehumidification (cooling)
-
2 Auxiliary dry contacts control 2 of the following: Whole house humidifier, dehumidifier, or ventilation system
-
Test modes and alert diagnostics
-
Screen access restrictions
-
Over-the-air software upgrade
-
Local software upgrade option
-
Color: Designer Silver
-
Retail Package Sleeve
-
Limited Warranty: 5 yr. base/10 yr. registered
Application
-
Conventional gas/electric, heat pump, and dual fuel systems
-
Conventional boiler systems (forced air only)
-
Conventional HVAC systems: 2 Heat / 2 cool
-
Heat Pump systems: Up to 5 stages heat / 2 stages cool (2 compressor heat - 3 auxiliary heat / 2 cooling)
-
Heat Pump switchover valve: selectable "with cool or with heat"
-
Remote wired indoor temperature sensor (optional) ZZSENSAL0400AA
-
Remote wireless indoor temperature and humidity sensor (optional): ZSENS930AW00MA
-
Remote wired outdoor temperature sensor (optional) BAYSEN01ATEMPA
-
PWM Circuit (BK terminal): controls indoor unit variable speed blower
-
Wall cover plate BAYCOVR800A
NOTE: Use 18-gauge color-coded thermostat cable for proper wiring. All unused thermostat wire to be grounded at indoor unit chassis ground only. Shielded cable may be required if system interference is experienced. Ground only one end of the shield to the system chassis. Do not run wires in the same bundle with HVAC wires. ALWAYS KEEP AWAY from high voltage wiring to avoid interference.
Replaces / Supersedes: ACONT624AS42DA ACONT624 ACONT824 TCONT824 ACONT824AS XL824 ACONT824AS52DA ACONT824AS52DB and others
Additional fuses available , Contact Us with your System's Model & Serial Number for more information.
Click on any of the links below to download associated documentation.
»
Install Guide - ACONT824.pdf
