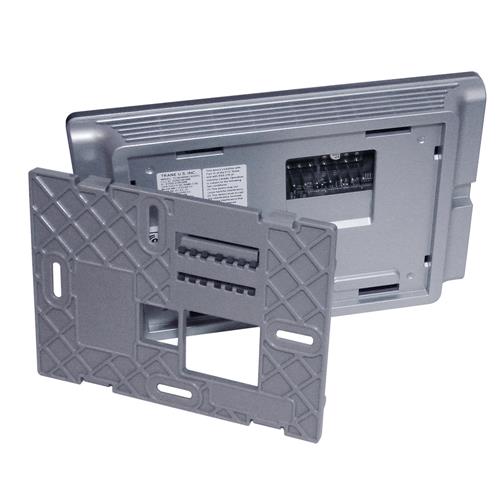

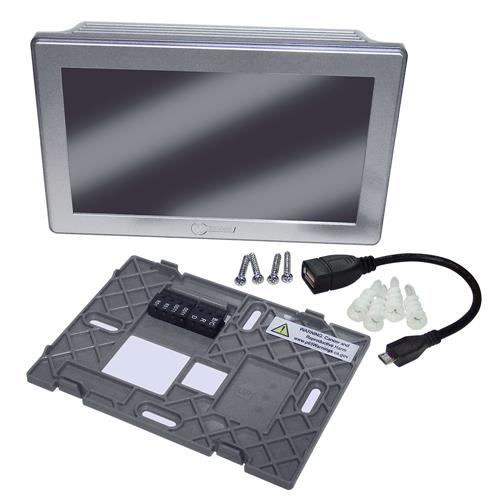

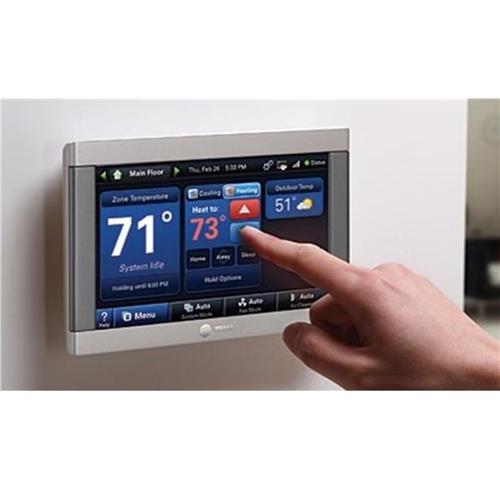

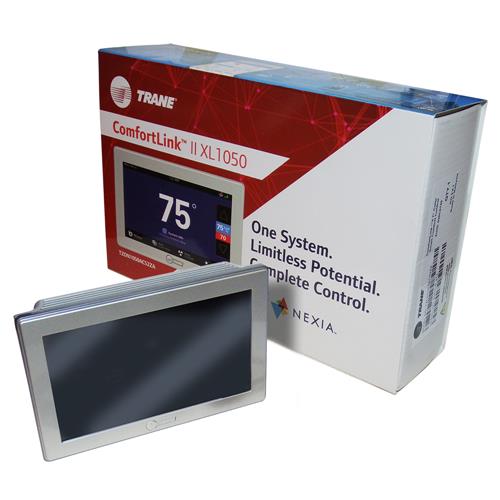

TZON1050 Trane XL1050 ComfortLink Control

SKU: TZON1050 | Brand: Trane
QTY
Price
$539.80/each
Please Contact Us for Quantity pricing.
This Item Ships FREE!
Add To Cart
Overview
Documentation
The ComfortLink™ II XL1050 Zoning Control with built-in Nexia™ remote climate access combines zoning technology and a home automation hub to remotely control your home, comfort, and energy use. This control is 7-day programmable, with up to four schedules per day and five heat and two cool settings. In addition to a color display, it’s easily accessible from a smartphone, tablet or computer, which makes adjusting the temperature for your family’s comfort a breeze.

TZONE1050AC52ZA , replaces previous TZONE950 Models

Features
  • FREE SHIPPING!
  • 7" High Definition Color LCD Display , Touchscreen Interface
  • Z-Wave Plus Bridge Inside , Connect over 200 Z-Wave Devices
  • Control from SmartPhone , Tablet or Computer - Internet / App Required
  • Controls Communicating Systems or Conventionsl 24V Systems with Relay Panel (Sold Separately)
  • 7-Day Programmable with up to 4 Schedules per Day
  • Customizable Home Screen (color , information , layout)
  • Allergy Clean & Quick Clean Indoor Air Cycles
  • Service Reminders for Filters , EAC , Humidifirer , HVAC System & UV Lights
  • Optional Accessories / Sold Separately:
    • Relay Panel:  BAY24VRP52DC / BAY Panel
    • Remote Wired Indoor Sensor:  ZZSENSAL0400AA
    • Remote Wireless Indoor Sensor:  ZSENS930AW00MA
    • Remote Wired Outdoor Sensor:  BAYSEN01ATEMPA
  • Warranty:  5 year base , 10 year Registered

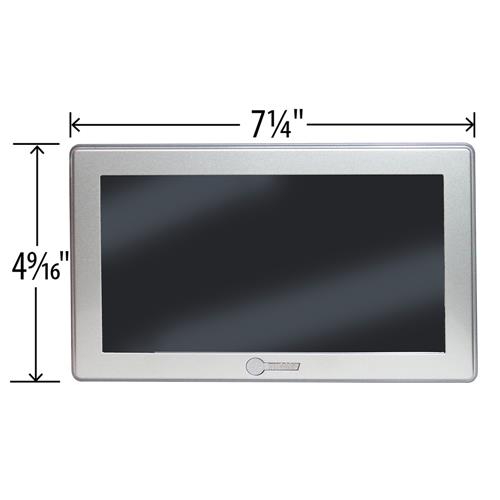

  • Dimensions:  7.2" x 4.5" x 1.2" HWD , Display:  6.1" x 3.3"
NOTE:  Use  18-gauge  color-coded  thermostat  cable  for  proper wiring. All  unused  thermostat  wire  to  be  grounded  at  indoor  unit  chassis ground only. Shielded cable may be required if system interference is experienced.  Ground  only  one  end of the shield to the system chassis.  Do not run wires in the same bundle with HVAC wires.  ALWAYS KEEP AWAY from high voltage wiring to avoid interference.

Replaces / Supersedes:  AZON1050 AZONE1050 AZON1050AC52Z  AZONE950AC52 AZON1050AC52ZA AZONE950AC52Z CNT06390 CNT6390 CNT-6390 TZON1050 TZONE1050 TZON1050AC52Z  TZONE950AC52 TZON1050AC52ZA TZONE950AC52Z TZON1 XL1050 TCONT and others.  Also available with American Standard Logo CNT06391

PROP 65 Warning LabelWARNING:  CA Residents: Prop 65 Warning(s) - For more information go to  www.P65Warnings.ca.gov

Additional products available , Contact Us  for more information.
Click on any of the links below to download associated documentation.

» TZON1050 Installation Guide.pdf
» Comfort Link Products.pdf
» TZONE1050 User Guide.pdf
