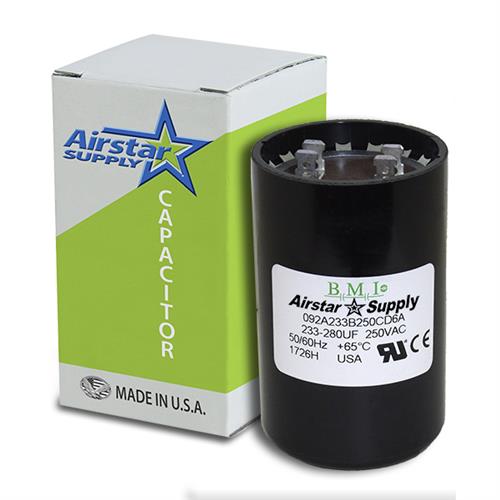

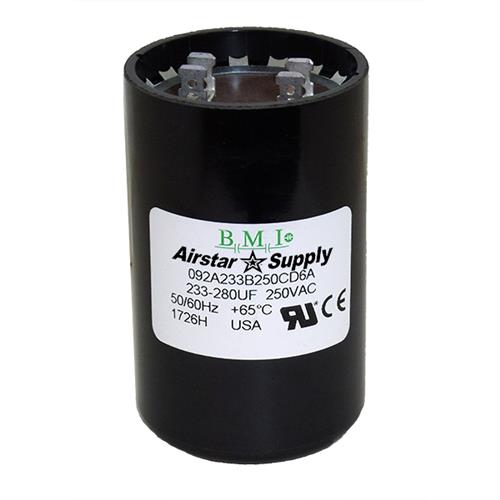

233 - 280 uF x 220/250 VAC BMI Start Capacitor

SKU: BMI_233-280x250 | Brand: BMI
QTY
Price
$18.25
1-2
Pieces
$17.65
3-5
Pieces
$16.55
6-12
Pieces
$15.15
13-24
Pieces
Quote
25
& Over
This item ships FREE!

Add To Cart
Overview
Documentation
BMI Motor Start Capacitors are non-poloarized aluminum electolytic capacitors designed for intermittent duty in AC motor starting circuits as well as starting fractional horsepower, single-phase electric motors and gear motor applications.  Housed in rugged plastic cases, which require no added installation, these capacitors Made in th U.S.A. are designed and engineered to the highest EIA Standards.

Barker Microfarads Capacitor # 092A233B250CD6A

Specifications

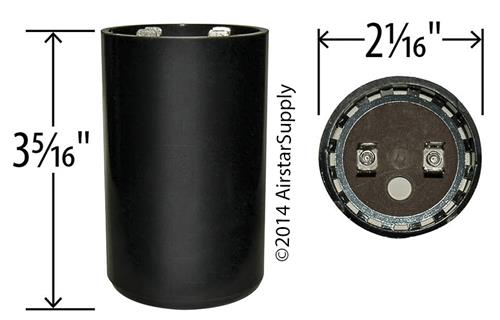

  • Round , Start Capacitor
  • 233-280 uF Microfarad Rating
  • 220 / 250 VAC Rating
Features
  • FREE SHIPPING!
  • All Capacitors are Individually Boxed
  • Plastic Case , Moisture and Oil Resistant
  • UL 810 Recognized Capacitors
  • -40 to 165°C Operating Temperature
  • 50/60 Hz Operating Frequency

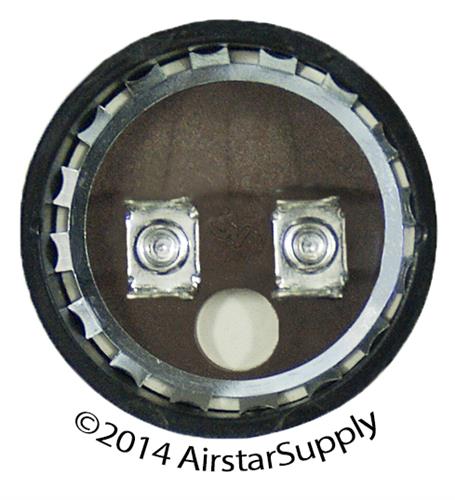

  • 1/4" Quick Disconnect Terminals
Supersedes all old Aerovox 233-280 , 233 - 280 uF , Dayton Grainger 2MET9 MARS 11053 , JARD 11953 , Global 1053 , Packard PTMJ233 PTMJ233A PTM-J233 , Vanguard BC-233M-250 , Supco CS233-280X220 , CS233X220 and other Start Capacitors with this uF/Mfd & VAC Rating.

PROP 65 Warning LabelWARNING:  CA Residents: Prop 65 Warning(s) - For more information go to  www.P65Warnings.ca.gov

For Additional Capacitors & Quantity Discounts Visit:  www.JustCapacitors.com
Click on any of the links below to download associated documentation.

» BMI Specifications - Start Capacitors.pdf
» MSDS Safety Data Sheet - BMI Start Capacitors.pdf
